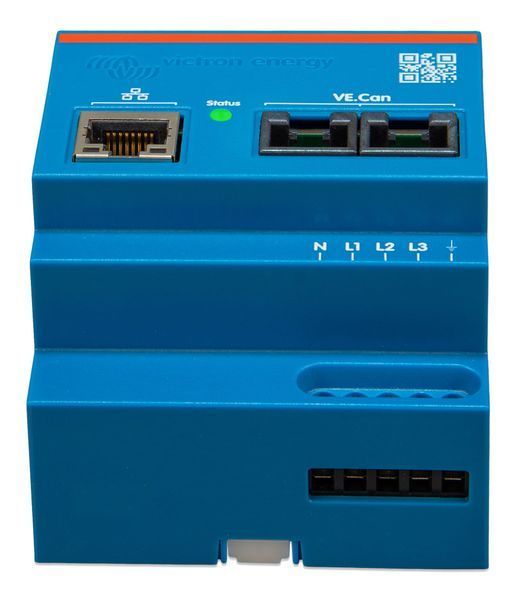

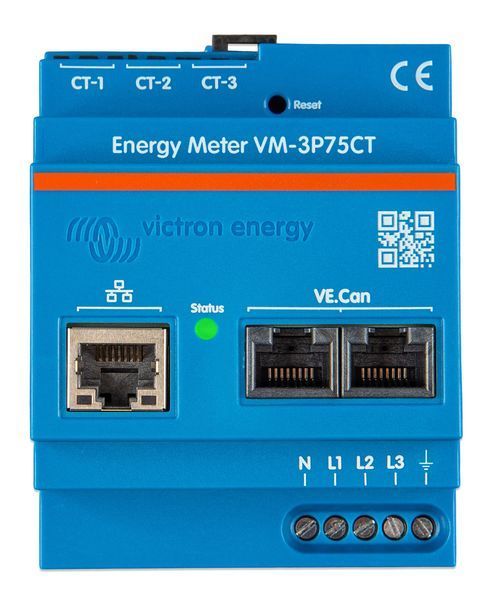

Victron Energy Electricity Meter VM-3P75CT (REL200300100) — is an innovative three-phase power meter designed by Victron engineers. Unlike traditional direct-connected meters, this model uses external current transformers (split-core clips) to measure loads up to 75 A per phase. This radically simplifies installation in already assembled electrical panels, as it does not require breaking power cables.
Features and Advantages of the VM-3P75CT Meter

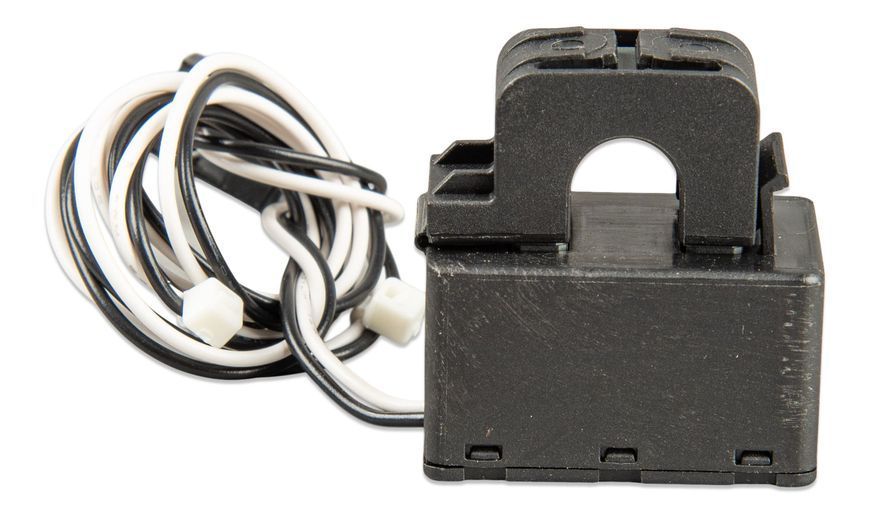

- Easy installation: measurement is carried out using split-core current transformers (included), which easily snap onto phase wires.
- Ethernet and VE.Can interface: connects to the local network or directly to the GX panel (Cerbo GX) via Ethernet or VE.Can ports, providing high data transfer speeds.
- Built-in Wi-Fi: allows easy configuration of the meter via the proprietary VictronConnect app using a smartphone.
- Fast response speed: the meter is specially optimized for the fast operation of hybrid energy storage systems (ESS).
Technical Specifications
- Article: REL200300100
- Number of phases: 1 or 3 phases
- Maximum current: 75 A per phase (via current transformers)
- Communication interfaces: Ethernet, VE.Can, Wi-Fi (for configuration)
- Nominal voltage: 230 V / 400 V (AC)
- Mounting: DIN rail (very compact casing)

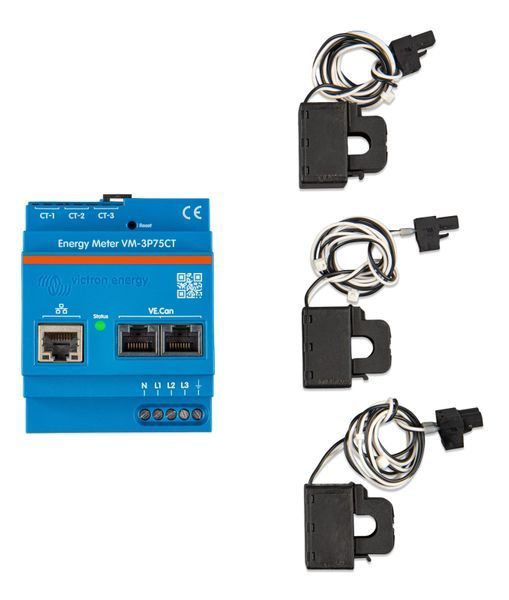

- Included accessories: includes 3 split-core current transformers (clips)
Applications
- Modernizing existing distribution boards for hybrid ESS systems (no need to reconnect thick power cables).
- Monitoring electricity consumption in three-phase and single-phase systems.
- Accurate monitoring of third-party grid-tied inverters and displaying their generation on the Victron VRM portal.
Configuration and Management
The meter easily integrates into the Victron ecosystem. Simply connect it to a router (Ethernet) or directly to the VE.Can port on Cerbo GX. Initial configuration takes just a couple of minutes via Bluetooth/Wi-Fi and the VictronConnect app.
