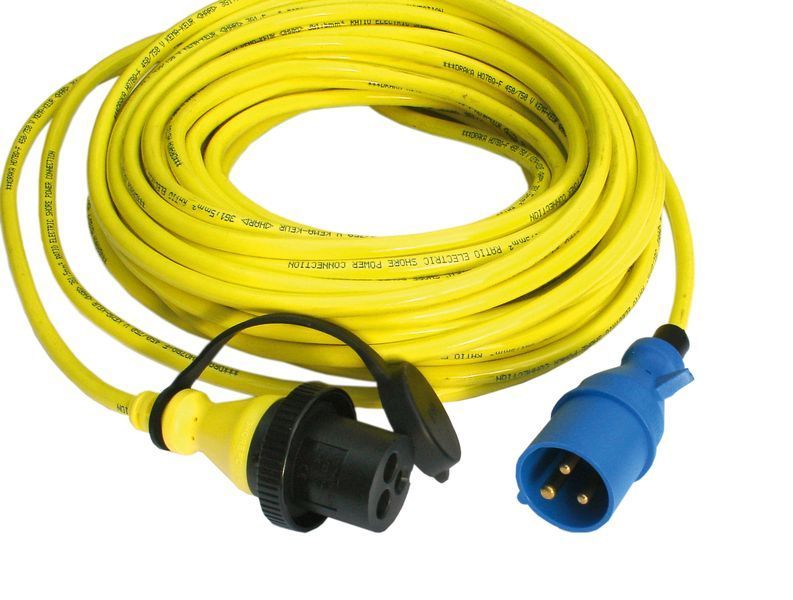

Victron Energy Shore Power Cable 25m 32A (SHP306002500) — is the most powerful and longest power cord in the lineup (25 meters, 32 Amps), designed for flagship yachts, commercial vessels, and large motorhomes with high energy consumption. The cable is equipped with oversized IEC 60309 (32A) industrial connectors and thick copper conductors to transmit significant currents without voltage drops.
Technical Specifications
- Maximum current: 32 A
- Nominal voltage: 250 V (AC)
- Cable type: H07BQ-F 3x6 mm² (maximum cross-section for cables of this type)
- Cable length: 25 meters
- Jacket color: bright yellow
- Shore-side connector: heavy-duty plug IEC 60309 2p+E (32A)
- Vessel-side connector: socket IEC 60309 (32A) with a sealed cover and LED indicator
- Protection degree: IP56
- Certification: CE
- Weight: 10.5 kg
Advantages of the Victron SHP306002500 Cable
- Maximum power: the 6 mm² cross-section and 32A industrial connectors allow safely powering the most energy-intensive onboard systems over a distance of up to 25 meters.
- Reinforced jacket: ultra-reliable polyurethane protects the cable from chafing against the pier and withstands extreme temperatures.
- LED indication: an LED light in the socket informs about the presence of incoming 220V voltage.
