Victron Skylla-i Charger 24V 80A dual-output smart 230V with network integration - SKI024080000

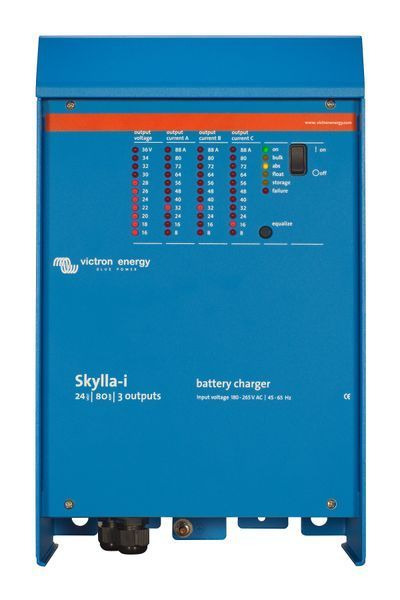

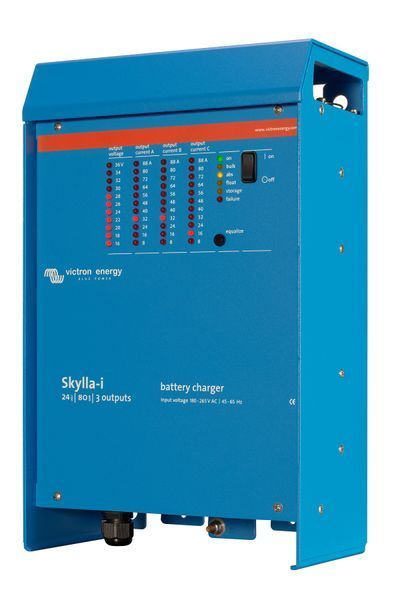

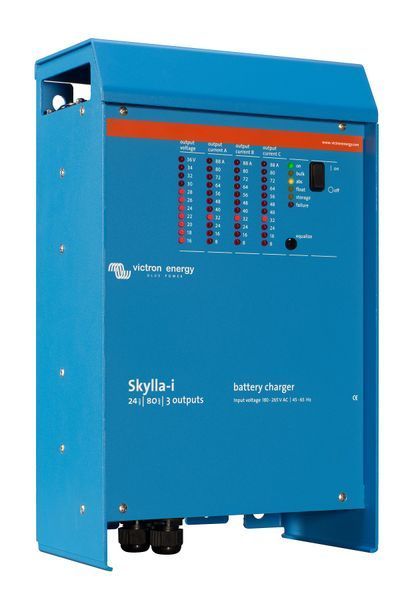

Victron Energy Skylla-i 24/80 (1+1) 230V (24V, 80A) Charger – is a high-tech professional station created for safe and most efficient replenishment of battery charge. The equipment is ideal for marine transport, industrial facilities, and autonomous power grids. The device is capable of servicing several battery groups (according to the 1+1 scheme or with 3 independent outputs), features a very wide range of acceptable input voltage (185-265V AC and 180-350V DC), and works perfectly with lithium cells (LiFePO4). The built-in VE.Can (NMEA2000) interface allows for easy synchronization of a group of chargers and connecting them to modern remote monitoring systems.

Key Advantages of the Skylla-i Model

1. Multi-channel charging – simultaneous servicing of two or three independent battery banks.
2. Smart algorithm – adaptive 7-stage technology for perfect and gentle capacity replenishment.
3. Lithium battery support (LiFePO4/Li-Ion) – full interaction and management via CAN-bus.
4. Power versatility – uninterrupted operation during severe voltage drops or spikes thanks to the support of 185-265V AC and 180-350V DC.
5. Temperature resistance (-20°C to +60°C) – reliable and stable operation in harsh climate conditions.
6. VE.Can protocol – easy synchronization and combination of multiple devices for parallel operation in one network.
7. BatterySafe function – protection against excessive gas emission (boiling), significantly extending battery life.
8. "Storage" Mode (Storage) – prevents premature wear and corrosion of lead plates during long battery idle periods.

Functional and Technological Features

• BatterySafe control – automatic voltage limitation to prevent excessive gas formation in the cells.
• Thermal protection – automatic reduction of charging current during critical heating of the electronics.
• Storage Mode – reduction of float voltage to a safe minimum to eliminate electrolyte loss during long-term storage.
• Temperature compensation – continuous adjustment of charge parameters depending on the current temperature of the battery.
• Voltage Sense – intelligent compensation for voltage drops over long connection cables.
• NMEA2000 compatibility – seamless integration into digital networks of marine vessels and industrial enterprises.
• Power supply mode – the device is capable of outputting a smooth and stable voltage even without a connected battery.
• Remote access – management and monitoring using Skylla-i Control, Ekrano GX, or Cerbo GX panels.
• Alarm Relay – a dry contact for integrating the charger into a general automation and alarm system.

Applications and Use Cases

• Fleet (boats, yachts, commercial vessels) – high degree of electronics protection from moisture and salt spray.
• Autonomous energy – quality charging of lead-acid and LiFePO4 cells as part of solar and wind power plants.
• Caravanning and motorhomes – organizing a stable power supply for long journeys and camping trips.
• Industrial sector – reliable backup power for critical equipment.
• Mobile laboratories and medicine – reliable operation of equipment in harsh field and non-standard conditions.

Model Range Comparison of the Skylla-i Line

Interfaces and Communication

• CAN-bus (NMEA2000 / VE.Can) – a bus for integrating the device into digital monitoring and comprehensive management systems.
• Ports RJ45 (UTP) – used for cable synchronization of multiple devices operating in one network.
• Global remote control – when using the original Skylla-i Control Panel or GX line smart devices (Cerbo GX, Ekrano GX), you get full access to the charger via the Internet. This makes it possible to update software, change charge algorithms, and fine-tune the system from anywhere in the world. Add a battery monitor to the system to keep your power cells under absolute control!
• Alarm Relay – built-in relay output for switching with third-party alarm systems.
