Victron Skylla-i Charger 24V 100A triple-output smart ultra-high-power 230V - SKI024100002

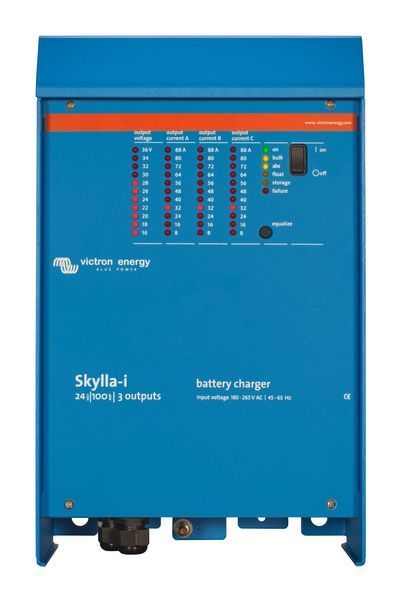

Victron Energy Skylla-i 24/100 (3) 230V (24V, 100A) Charger – is a heavy-duty, professional-level charging station designed for the reliable and safe battery capacity replenishment. The device is ideally adapted for operation on water transport, industrial facilities, and in independent power systems. The device can charge several battery groups simultaneously (according to the 1+1 scheme or via 3 independent outputs), features high stability during input voltage fluctuations (185-265V AC and 180-350V DC), and handles lithium cells (LiFePO4) perfectly. The built-in digital VE.Can (NMEA2000) bus allows for easy synchronization of multiple devices and their implementation into remote control complexes.

Main Advantages of the Skylla-i Line

1. Multi-channel charge – simultaneous servicing of two or three independent battery groups.
2. Smart algorithm – adaptive 7-stage technology for the highest quality capacity restoration.
3. Lithium battery support (LiFePO4/Li-Ion) – full interaction and remote control via CAN-bus interface.
4. Power versatility – trouble-free operation during voltage drops thanks to a wide acceptance range (185-265V AC and 180-350V DC).
5. Temperature resistance (from -20°C to +60°C) – stable operation in extreme climate conditions.
6. VE.Can protocol – trouble-free synchronization and combination of multiple stations for parallel operation in a single circuit.
7. BatterySafe function – protection against excessive gas emission (boiling), significantly extending battery life.
8. "Storage" Mode (Storage) – prevents wear and corrosion development of lead plates during long idle periods.

Functional and Technological Features

• BatterySafe control – automatic voltage limitation to prevent heavy gas formation in the cells.
• Thermal protection – independent reduction of charging current during dangerous heating of internal components.
• Storage Mode – reduction of float voltage to a safe minimum, eliminating electrolyte loss during long-term storage.
• Temperature compensation – continuous adjustment of charge parameters taking into account the current temperature of the battery.
• Voltage Sense technology – intelligent leveling of power drops on long connecting cables.
• NMEA2000 compatibility – seamless integration into onboard digital networks of marine vessels and industrial equipment.
• Operation as a power supply – the device is capable of outputting a smooth and stable voltage even when the battery is disconnected.
• Remote access – management and deep monitoring using Skylla-i Control Panel, Ekrano GX, or Cerbo GX panels.
• Alarm Relay – a dedicated contact for integrating the station into automation and emergency notification systems.

Applications and Use Cases

• Fleet (ships, boats, yachts) – excellent protection of electronics from moisture and aggressive salt environment.
• Autonomous energy – quality charging of lead-acid and LiFePO4 storage devices within solar or wind power plants.
• Caravanning and campers – organizing a stable power supply during long journeys in motorhomes.
• Industrial sector – reliable backup power for critical and sensitive apparatus.
• Mobile laboratories and medicine – reliable operation of equipment in complex and field conditions.

Comparison Table of the Skylla-i Line

Interfaces and Communication

• CAN-bus (NMEA2000 / VE.Can) – a bus for integrating the device into advanced monitoring and comprehensive management systems.
• Ports RJ45 (UTP) – used for cable synchronization of multiple devices operating in a single circuit.
• Global remote control – when using the original Skylla-i Control Panel or GX line smart devices (Cerbo GX, Ekrano GX), you get full access to the charger via the Internet. This makes it possible to remotely update the firmware, change charge algorithms, and fine-tune the system from anywhere in the world. Add a battery monitor to the system to keep your power cells under absolute control!
• Alarm Relay – built-in relay output for switching with third-party alarm and safety systems.
