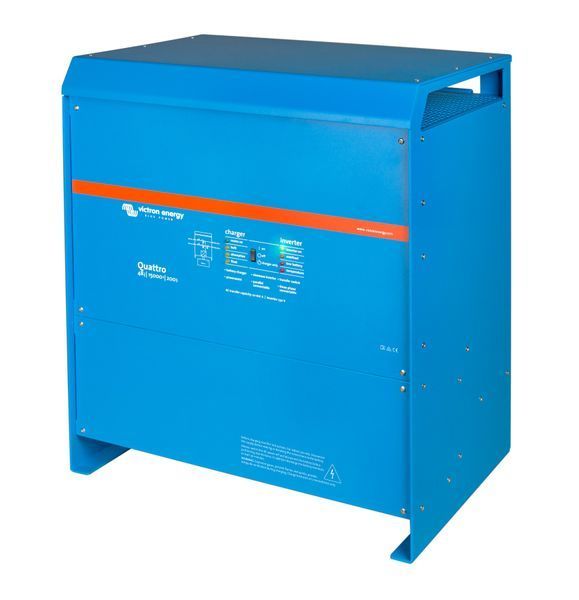

The Quattro 48/15000/200-100/100 Hybrid Inverter stands as the ultimate flagship within Victron Energy’s cutting-edge equipment lineup. Specifically engineered for heavy-duty industrial challenges, this robust unit delivers a continuous power rating of up to 15,000 VA. It features a powerful integrated 200 A battery charger, dual independent AC inputs, and comprehensive compatibility with off-grid, hybrid, and grid-tied Energy Storage Systems (ESS).
This hardware serves as a foundational component in demanding engineering designs where absolute power continuity, seamless scalability, and maximum operational safety with Lithium Iron Phosphate (LiFePO₄) batteries are of paramount importance.
For high-capacity installations, these units are frequently deployed in three-phase layouts. For example, a base cluster of three inverters creates a 400V, 45 kVA / 36 kW architecture. For larger demands, you can synchronize groups of 6, 9, or 12 units to scale the overall capacity to 90 kVA / 72 kW, 135 kVA / 108 kW, or 180 kVA / 144 kW respectively.
Key Advantages of the Quattro 48/15000/200-100/100 Inverter
- Exceptional Performance: Rated at 15,000 VA / 12,000 W continuous, with a short-term peak capacity reaching up to 25,000 W.
- Dual AC Inputs with Smart Built-in ATS — handles automatic transfer switching seamlessly between the utility grid and an auxiliary generator.
- Every AC Input Supports Proprietary PowerControl and PowerAssist — a perfect solution when running off a generator with a lower power capacity than the grid parameters.
- Dual AC Outputs – the main AC-1 output guarantees uninterrupted backup power from batteries or solar arrays, while the auxiliary AC-2 line activates only when external utility or generator power is present.
- Massive Transfer Capacity of 100 A or 22 kW – when operating from the grid, the inverter provides a 22 kW bypass capacity, allowing you to run complex combinations of heavy loads on the line without worrying about system overloads.
- High Efficiency up to 96% paired with remarkably stable performance under continuous heavy electrical loads.
- Pure Sine Wave Output — provides pristine power delivery for sensitive electronics without compromises.
- 200 A Battery Charger — fully compatible with all known 48V battery types, offering a wide voltage adjustment range (38V to 66V) that is perfectly optimized for 15-cell and 16-cell LiFePO4 configurations.
- Direct LiFePO₄ Integration with Exchange over VE.Bus or VE.Can — secure, reliable, and straightforward communication setup.
- Industrial-Grade Enclosure: rugged aluminum housing with an IP20 protection rating, fully operational in harsh environments ranging from –20°C to +60°C.
- Scalable up to 144 kW / 180 kVA — supports parallel connection of up to 12 devices in a single three-phase grid layout.
Advanced Technical Features
Dual AC Inputs with Integrated Automatic Transfer Switch (ATS)
- The Quattro can be permanently wired to two separate AC sources simultaneously: for instance, shore power + generator, two different generator sets, or dual utility lines.
- Automatically switches over to the active power source based on user-defined priorities.
- Ultra-fast transfer times (between 4 and 20 ms) ensure that critical loads continue running without a hitch.
- Functions as an intelligent, fully embedded ATS within the main inverter mainboard.
- Custom current thresholds (PowerControl) can be assigned to each individual input line.
- The PowerAssist feature injects extra current from the batteries during temporary peak loads.
Optimized for Solar Applications
- Renewable energy integration is where the Quattro truly excels. It performs optimally in:
- Complete off-grid configurations;
- ESS setups running alongside MPPT charge controllers or grid-tied PV inverters;
- Real-time solar consumption patterns or dedicated backup setups.
- The proprietary VE.Bus interface permits effortless system programming via Cerbo GX or the VE.Configure software suite, making it adaptable to any custom solar infrastructure.
Professional ESS Control Logic
Provides out-of-the-box support for:
- maximizing solar self-consumption from your PV array;
- maintaining reliable backup during utility failures;
- smart time-of-use scheduling (e.g., off-peak night charging – peak-hour day discharging);
- complex automation scripts via Victron Assistants or the VRM cloud portal.
LiFePO₄ Support – Direct BMS Data Exchange
The Quattro 48/15000/200-100/100 is purpose-built to sync seamlessly with modern lithium batteries (LiFePO₄). Data streams via VE.Bus, VE.Can, or BMS-Can deliver:
- Automated, intelligent charge and discharge profiles.
- Multi-tiered fail-safe safeguards against over-temperature, over-charging, and voltage spikes.
- Pinpoint accuracy for State of Charge (SOC) tracking and cell temperature metrics.
- Enhanced operational safety alongside maximum long-term battery lifespan.
Target Applications
- Industrial facilities and factories requiring high-power delivery and absolute process uptime.
- Commercial buildings, business offices, and healthcare centers needing critical circuit redundancy.
- Large-scale hybrid or fully off-grid solar power stations.
- High-end residential properties and estates with demanding electrical loads – stable energy.
- Mobile field stations, utility containers, and specialty work vehicles – reliability in motion.
- Telecommunication nodes, server rooms, and critical data centers – uninterrupted infrastructure backup.
Compliance with ECE R10-5 Electromagnetic Compatibility (EMC) Standard
ECE R10-5 – is a strict international automotive regulatory standard governing electromagnetic compatibility (EMC) for electronics installed on vehicles. It defines rigorous thresholds for electromagnetic emissions and immunity against external interference.
What does ECE R10-5 Certification mean for Victron Energy Systems?
Low Electromagnetic Emissions
- The inverter produces no radio frequency interference that could disrupt onboard GPS navigation, marine radios, cellular communications, or sensitive tracking sensors on yachts, trucks, or heavy machinery.
High Electromagnetic Immunity
- The unit maintains steady operation under harsh environmental conditions, coping easily with electrical noise, sudden voltage drops, or spikes common in the electrical networks of commercial trucks, buses, and specialized fleets.
Safe Integration into Mobile Architectures
- Compliance with UNECE (ECE) regulations guarantees that the inverter can be installed on vehicles, motorhomes, and vessels without risking the performance of factory electronic control units or safety-critical features like ABS.
Certified International Quality Assurance
- Bearing the ECE R10-5 mark confirms that Victron Energy hardware has undergone strict independent laboratory testing and complies with global transportation safety requirements.
What benefits does this offer to Inverter Smart users?
- Legal installation on commercial and leisure vehicles without undergoing tedious, additional certification processes.
- Zero interference profiles – the inverter will not inject background noise into marine audio systems, autopilots, radar equipment, or GPS positioning modules.
- Industrial-grade reliability in demanding mobile installations – marine vessels, RVs, fleet transport.
- Robust electromagnetic protection – internal circuitry is shielded against failures caused by sudden voltage spikes.
Communication and Monitoring Interfaces
- VE.Bus – configures parallel or three-phase networking, links to GX controllers, and opens advanced configuration adjustments.
- USB/RS232 (via MK3-USB adapter) – enables localized system setup using VE.Configure or the VictronConnect utility app.
- VE.Bus Smart Dongle – provides Bluetooth connectivity for remote telemetry checks and minor control changes via smartphone.
- GX Controller Integration – an expansion gateway that provides VE.Can, VE.Direct, Ethernet, Wi-Fi, and USB connectivity. It bridges your entire power network to the internet and the Victron Remote Management (VRM) cloud. It brings together all your system components (MPPT controllers, shunts, smart batteries with BMS) into a unified portal, making tracking, analytics, and diagnostics exceptionally easy from anywhere in the world right on your phone.
