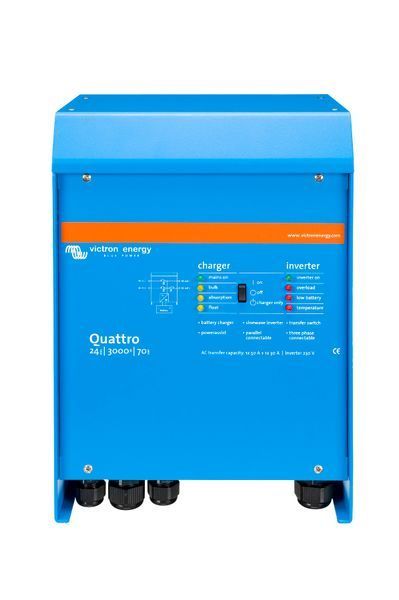

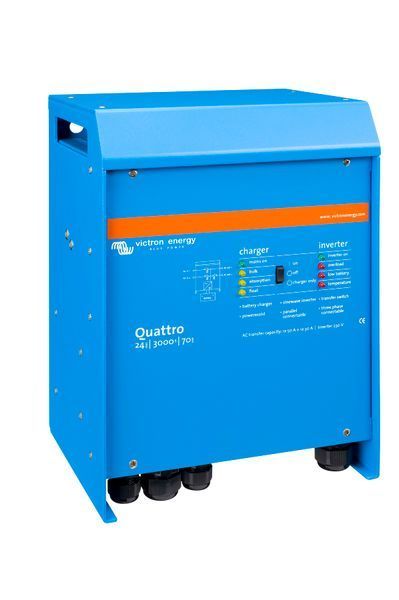

Multifunctional hybrid inverter Quattro 24/3000/70-50/50 is rightfully considered the flagship in the Victron Energy equipment family. The device was developed for the industrial and professional sector, so it easily delivers up to 3,000 VA of power. In its arsenal: a powerful 70-amp charger, dual alternating current input, and flawless integration with any type of networks — from fully autonomous to hybrid ESS complexes.
This device becomes the heart of the energy system where the highest level of reliability, unconditional uninterrupted power supply, scalability, and absolute safety of lithium battery (LiFePO₄) integration are required.
The inverter supports creating cascades: you can combine three devices into a powerful three-phase network (400V 45kVA/36kW), or scale the system up to 6, 9, or 12 devices, obtaining impressive 90kVA/72kW, 135kVA/108kW, and 180kVA/144kW at the output.
Main advantages of the Quattro 24/3000/70-50/50 model
- Nominal power 3,000 VA (2,400 W), with the ability to withstand peak loads up to 6,000 W.
- Dual AC input with smart ATS — ensures unnoticeable source switching (for example, between the central grid and a diesel generator).
- PowerControl and PowerAssist technologies on each input — irreplaceable if you use a low-power generator that cannot cope with peak loads.
- Two independent AC outputs: the main line (AC-1) is reserved by batteries for continuous operation of critical equipment, while the auxiliary (AC-2) powers secondary devices only when the external grid is present.
- Throughput capacity of 70 A (11 kW) — in the presence of an external network, the inverter seamlessly passes huge currents, allowing you to turn on powerful equipment without overloading the inverter's own power board.
- Excellent efficiency (up to 94%) and guaranteed stability of operation even under prolonged overload conditions.
- Pure sine wave at the output — sensitive electronics always receive perfect voltage.
- Built-in smart charger at 70 A — perfectly handles charging any 24V batteries, allowing detailed voltage adjustment within 19–33 Volts. Algorithms are optimized for assembled LiFePO4 batteries (15-16 cells).
- Communication with battery BMS (VE.Bus/VE.Can) — a guarantee of the safest and most controlled operation of LiFePO₄ arrays.
- Sturdy aluminum casing (IP20 protection) — the device works without problems in conditions from –20 to +60°C.
- Limitless expansion possibilities — by parallel connection of up to 12 devices, you can get a system with a capacity of 28.8 kW (36 kVA).
Unique technological solutions
Intelligent Automatic Transfer Switch (ATS) on two AC inputs
- The Quattro system can receive power simultaneously from two sources: for example, from the public grid and a generator, or from two different generators.
- The active source is selected automatically by the inverter, according to set priorities.
- The switching process occurs instantly (in the range of 4 to 20 ms).
- Performs the function of a full-fledged ATS cabinet integrated directly into the device's body.
- For both inputs, current limits can be set individually (PowerControl).
- The PowerAssist system can add power from the batteries if the external network is insufficient.
Designed to conquer solar energy
- Solar stations are the native element of Quattro equipment. The devices work perfectly in:
- Fully independent energy systems (off-grid).
- Hybrid ESS stations (in conjunction with MPPT controllers or grid inverters).
- Complex modes of priority consumption of solar energy online.
- Using the VE.Bus protocol, the inverter is configured in detail via the Cerbo GX system controller or the VE.Configure application, easily adapting to the configuration of any solar installation.
Advanced management of ESS systems
The following functions are supported:
- intelligent self-consumption of generated photovoltaic energy.
- reliable reservation in case of a phase loss.
- cycling: charging batteries at a favorable night tariff and using energy during the day.
- programming complex triggers via Victron Assistants or the VRM interface.
Working with LiFePO₄ and full integration with BMS
The Quattro 24/3000/70-50/50 inverter was initially designed for high-tech lithium storage units (LiFePO₄). Due to data exchange via VE.Bus, VE.Can, or BMS-Can digital buses, the following is provided:
- Dynamic control of charge and discharge currents.
- Multi-stage protection against overheating, critical drawdown, or battery overcharging.
- The most accurate transmission of the charge percentage (SOC) and monitoring of the internal temperature of the cells.
- Maximum operational safety and a multiple increase in the lifespan of storage units.
Main areas of application
- Industrial workshops and facilities requiring serious capacities and continuity of processes.
- Business centers and private clinics — for reliable reservation of electronics.
- Large-scale commercial and private solar power plants.
- Premium country estates that need a stable power supply.
- Mobile special complexes and motorhomes — to guarantee reliability in any location.
- Server centers and telecommunication hubs — for fail-safe powering of IT infrastructure.
Official ECE R10-5 (EMC) Certification
The ECE R10-5 standard is an international electromagnetic compatibility (EMC) certificate for equipment mounted on vehicles. It strictly regulates the level of the device's own radio emission and its immunity to external interference.
What does this mean for owners of Victron Energy equipment?
No harmful radio emissions
- Victron inverters work "quietly" in the electromagnetic plan, without creating interference that could jam radio communication, navigation, GPS signals, or the mobile network in a car, yacht, or inside special equipment.
Superb resistance to interference
- The equipment functions stably even under strong electromagnetic fields and severe voltage drops, which are often found in heavy trucks or industrial transport.
Legal integration into the transport electrical grid
- The UNECE (ECE) certificate gives the full right to install inverters in campers, boats, and official vehicles, without worrying about possible malfunctions in the standard computer and automotive safety systems (e.g., ABS).
Guarantee of absolute quality
- The ECE R10-5 document confirms that the device has successfully passed all international tests and is 100% safe for use on mobile platforms.
Key advantages for Inverter Smart users
- Permission for installation in transport without additional checks and recertification.
- Perfect "neighborhood" with other electronics: no interference for radars, autopilots, echo sounders, and communication systems.
- Exceptional fault tolerance when operating on marine vessels, in expedition motorhomes, and on commercial transport.
- Protected component base that is not afraid of sharp voltage fluctuations in the onboard network.
Communication and monitoring capabilities
- VE.Bus — used to organize parallel and three-phase operation of inverters, configure logic, and connect with GX modules.
- USB/RS232 port (with MK3-USB adapter) — direct inverter setup via VE.Configure or VictronConnect computer programs.
- VE.Bus Smart Dongle module — provides convenient wireless control of parameters via Bluetooth.
- GX series controllers — turn the inverter into a smart control center. Through VE.Can, VE.Direct, Ethernet, Wi-Fi, and USB ports, your energy system is integrated into the global internet and connected to the VRM cloud portal. This allows you to bring together MPPT controllers, shunts, and smart LiFePO4 batteries with BMS, giving you the ability to configure and monitor the entire power plant directly from your smartphone, from anywhere in the world.
