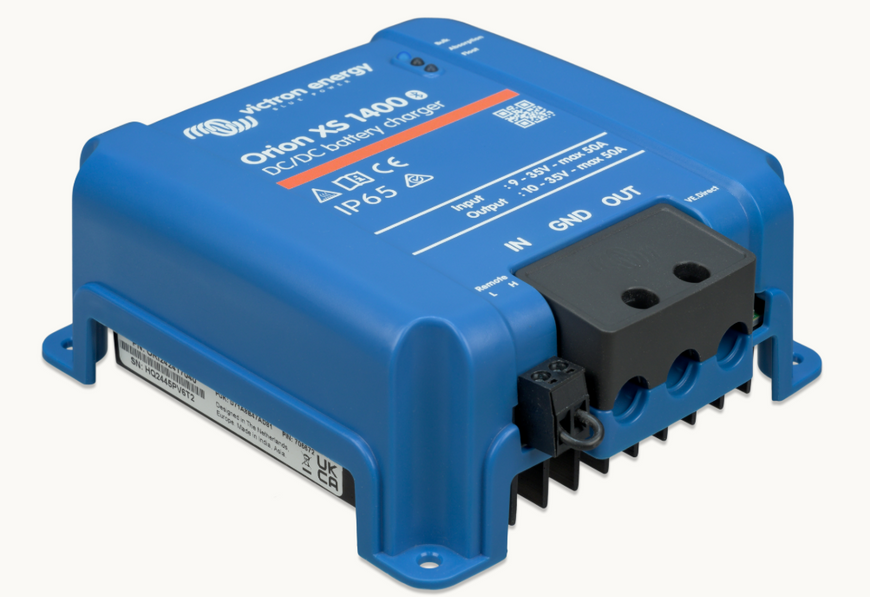

Victron Orion XS 1400W — is a top-of-the-line adaptive DC-DC charger of the latest generation. It is designed for powerful dual-battery systems that are powered by "smart" (Smart Alternator) or classic vehicle alternators. This is an uncompromising option for motorhomes, boats, yachts, and mobile complexes, where reliable, fast, and safe charging of a high-capacity service battery is the top priority.
Main Features of Orion XS 1400W
- Huge power: delivers up to 1400 W of stable energy (up to 50 A at 28 V).
- Universal range: supports input voltage from 9 to 35 V and smoothly adjusts the output from 10 to 35 V.
- Smart 4-stage charging: the device itself determines the depth of discharge of lead-acid batteries and adjusts the absorption time (Absorption) for their ideal charge.
- Full compatibility with Smart alternators (Euro 5/6): the system recognizes engine start, so the starter battery will never discharge completely.
- Smartphone control (Bluetooth): configure charge profiles, monitor parameters, and update firmware via the app without unnecessary wires.
- Power Supply mode: if necessary, it can work as an ultra-precise power supply for sensitive electronics without connecting a battery.
Why do Professionals Choose Orion XS?
- Minimal self-discharge: in sleep mode, the device consumes a ridiculously low 1.5 mA.
- Comprehensive electronic protection: built-in algorithms instantly save the system from overheating, short circuit, overload, and voltage drop.
- Infinite scalability: connect multiple converters in parallel to get any current strength — there are no limits.
- VE.Smart Networking Technology: wirelessly receives ultra-precise voltage (Vsense) and temperature (Tsense) data from smart shunts or other Victron sensors for filigree charge adjustment.
- Remote control (Remote ON/OFF): start charging by a signal from the ignition key, toggle switch, or BMS system.
Communication and Integration
- Bluetooth Smart: a fully-fledged portable control panel right in your phone.
- VE.Direct Interface: wired connection to system controllers (Cerbo GX, Ekrano GX) for integration into the general power system of a motorhome or yacht.
- DVCC compatibility: centralized control of currents and charge limits throughout the system via a single center.
Technical Summary
- Series: Orion XS 1400 (variations 12/12-50A or 24/24-50A)
- Maximum output: up to 1400 W (50 A at 28 V)
- Peak efficiency: up to 98.5%
- Operating temperatures: harsh conditions from -20°C to +60°C
- IP65 protection level: 100% tightness against dust and water (will withstand even direct rain)
- Compact size: 138.1 × 124.4 × 53 mm
- Weight: only 0.52 kg
- Connection: massive screw terminals for cable cross-section up to 21.2 mm²
Who Needs This and Where?
The Orion XS 1400W converter — is a top choice for:
- Expedition SUVs, campers, and vans
- Yachts and commercial boats — ideal for raising the voltage on long cable routes
- Autonomous solar complexes — as a connecting link for stable energy transfer
- Special transport — for backup power of critically important equipment
