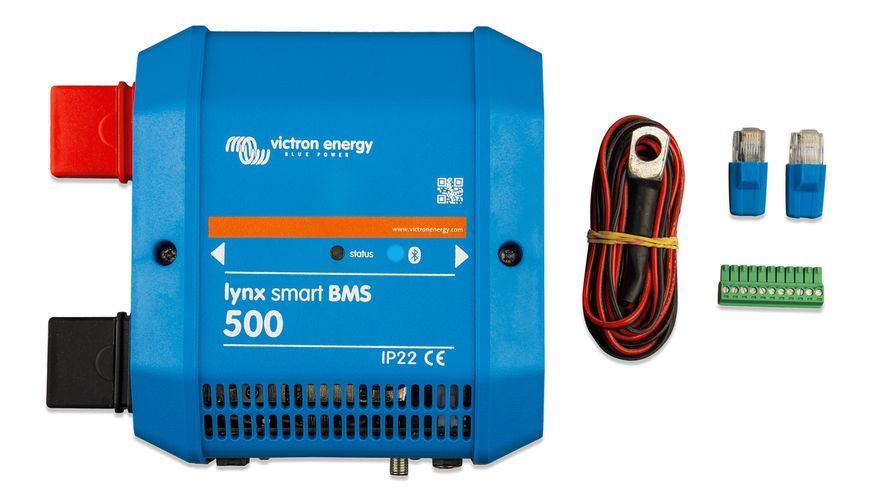

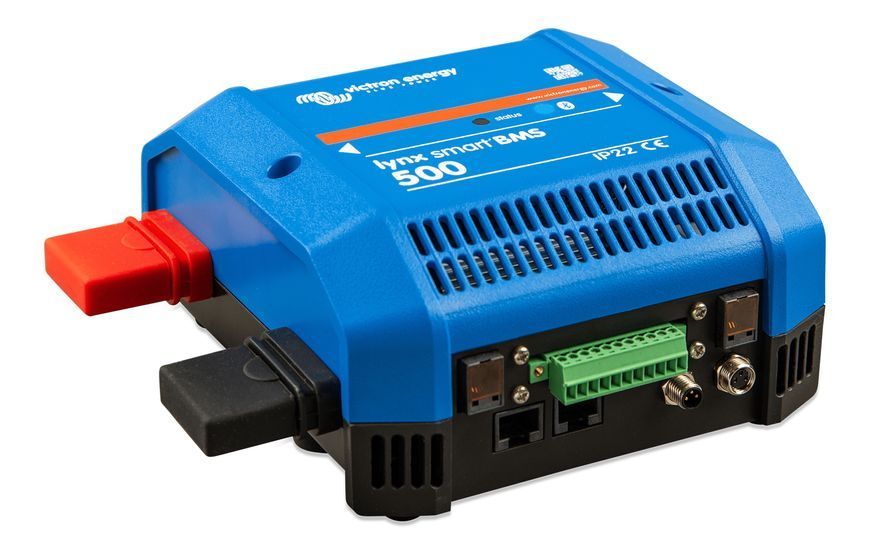

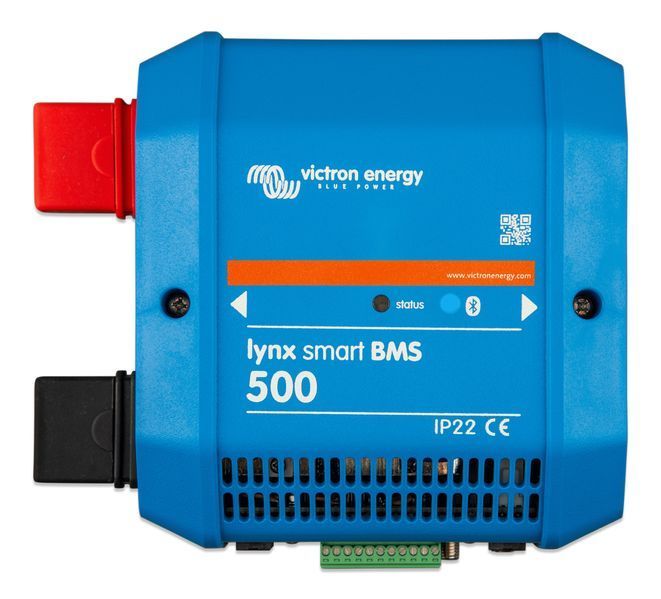

Victron LiFePO4 Battery Management System Lynx Smart BMS 500 (M10) - LYN034160210

Lynx Smart BMS 500 (M10) — this is a professional control block (BMS) for Victron LiFePO4 series lithium batteries, optimized for complex energy projects with a maximum current of up to 500 A. This module with M10 standard terminals combines smart management, detailed monitoring, protection, and a Lynx DC busbar in one device.

It is not just a protection board, but a real control center deeply integrated into the Victron Energy ecosystem. It supports communication with GX devices, the VRM cloud, and NMEA 2000 standard networks.

Advantages of the Lynx Smart BMS 500 Module

• Works with arrays of up to 20 Victron LiFePO4 batteries (with a total capacity of up to 102 kWh at 48 V)
• Built-in 500 A contactor (up to 600 A for a short time) - instantly de-energizes the network in case of emergency indicators
• Pre-charge technology - eliminates starting impulse currents when connecting inverters
• Bluetooth module - system setup and analysis via a smartphone (VictronConnect)
• Tight integration with GX panels (Cerbo, Ekrano) and data transmission to the VRM portal
• Real-time output of battery parameters (voltage, consumption currents, % charge)
• Special ATC and ATD ports for remote on/off of chargers and inverters
• Multifunctional relay - for autostart of diesel generators
• Scalability: parallel connection of up to 5 BMS
• Analysis of the state of fuses in Lynx Distributor distributors

Technical Innovations

Automatic Pre-charge

• Protects sensitive electronics from current surges when applying voltage to the discharged capacitors of inverters.

 Emergency Disconnect Contactor

• A built-in power relay for 500 A, which works automatically during over-discharge, overheating, or other critical failures.

 ATC/ATD System and Smart Relay

• Smart outputs allow the BMS to take control of starting generators and alternators.

 Wireless Control (VictronConnect)

• Setting all limits via Bluetooth

• Convenient Instant Readout widget

• Saving cycles and logs in the device's memory

 VE.Can / NMEA 2000 Interfaces

• Compatible with control panels on modern yachts

• Support for marine protocols NMEA2000 and J1939

Recommendations for Use

Hybrid solar systems – an excellent pair for MultiPlus and Quattro devices

ESS stations — safety when working with high loads

Marine applications - reliable power monitoring of boats and catamarans

Camping solutions - continuous control of energy reserves

Commercial power nodes on LiFePO4 – a professional quality standard

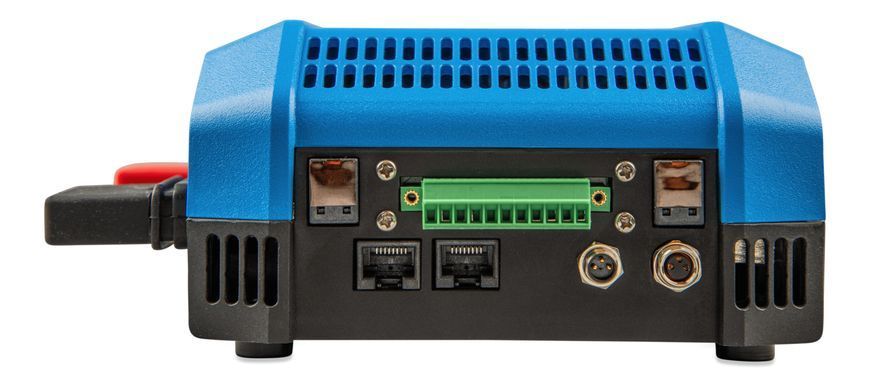

Communication Ports

Compatible Equipment

• Victron LiFePO4 Smart Batteries - batteries with balancing BTV cables
• Lynx Distributor — a branded distributor
• GX series panels - for data visualization
• VRM online system — free cloud monitoring
