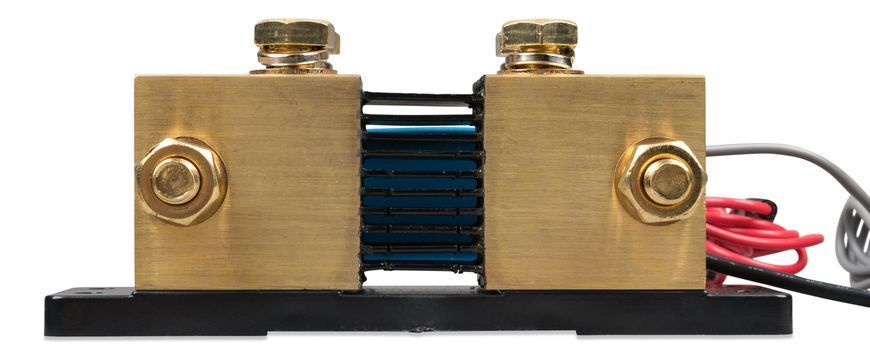

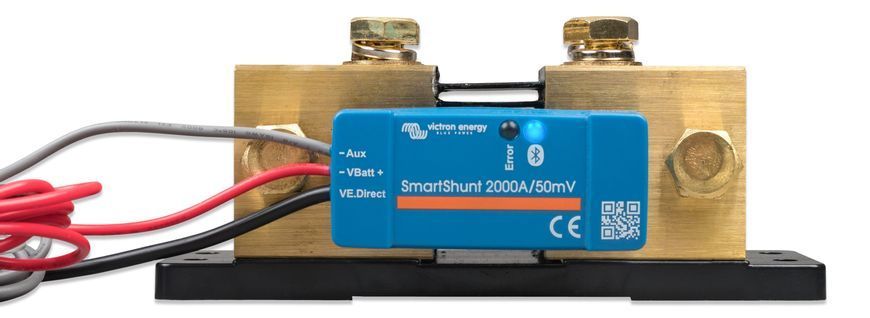

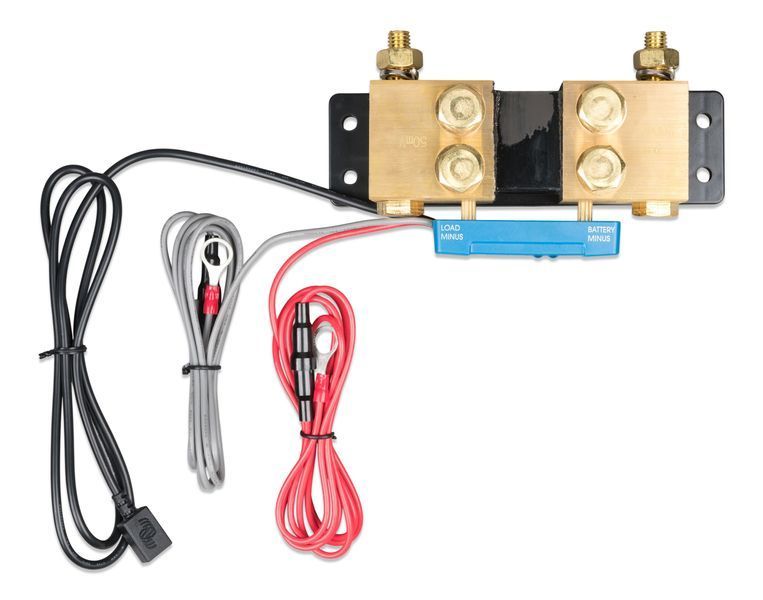

SmartShunt 2000A IP65 is a waterproof and dustproof version of the popular SmartShunt monitor. The device housing is completely sealed (IP65 standard), which makes it an indispensable solution for use in wet marine environments or outdoors. The device is functionally similar to the BMV-712 model, but does not have a physical display - all work takes place via Bluetooth via the VictronConnect application.
Ideal for boats, motor yachts, campers and industrial applications where reliability and protection from external factors are a top priority.
The main advantages of the Victron SmartShunt IP65 monitor
- Full protection according to IP65 standard - from moisture, dirt and dust
- Integrated Bluetooth Smart– for control from a smartphone (iOS/Android)
- VE.Direct Interface – for inclusion in the Cerbo GX or VRM ecosystem
- Midpoint voltage monitoring – identifying cell imbalance
- Programmable relay – for autostarting generators
- Input for temperature probe – battery protection against overheating
- Works together with LiFePO₄, AGM, GEL batteries
- Output of information to marine MFD displays(together with Cerbo GX via NMEA 2000 network)
Technical specifications
- Maximum operating current: 2000 A
- Voltage: 6.5 – 70 V DC
- Shunt characteristics: 2000 A/50 mV
- Article: SHU065220050
- Protection level:IP65
- Bluetooth Smart: yes
- Control relay: yes (up to 60 V, 1 A)
- VE.Direct bus: yes
- Temperature correction:supported (via ASS000100000)
- Midpoint voltage function: yes
- Self-discharge current: ≤1 mA
Where used
- Yachts and boats (excellent integration into NMEA2000)
- Caravans and SUVs (compact and reliable)
- External uninterruptible power supply systems (ESS)
- Solar power plants with monitoring via VRM
Available interfaces
- Bluetooth Smart - for VictronConnect app
- VE.Direct connector- communication with Color Control, Cerbo GX displays
- Relay - start and stop of the generator
- Midpoint control - balance of cans in 24V and 48V assemblies
Integration with chart plotters (Marine MFD)
- Using Cerbo GX, the SmartShunt IP65 monitor can display information directly on the vessel's navigation plotter screen.
- Supports brands Raymarine, Garmin, B&G, Simrad, Lowrance.
- The ship's captain sees voltage, SoC, current, discharge time in real time.
- Connects via NMEA2000 adapters or Ethernet connection.
🔗 Learn more about integration with marine MFD
Automatic generator control
The start signal is given when:
- SoC drop <50%
- Voltage sag < set threshold
Signal to stop when:
- SoC charge > 95%
- Reducing the charging current to the compensation level
All logic is configured in VictronConnect. This is an ideal solution for LiFePO₄ lithium batteries:
- Which have a flat voltage curve (difficult to determine SoC by Volts)
- Charges very quickly, saving the resource of the diesel generator
- Require strict temperature control
