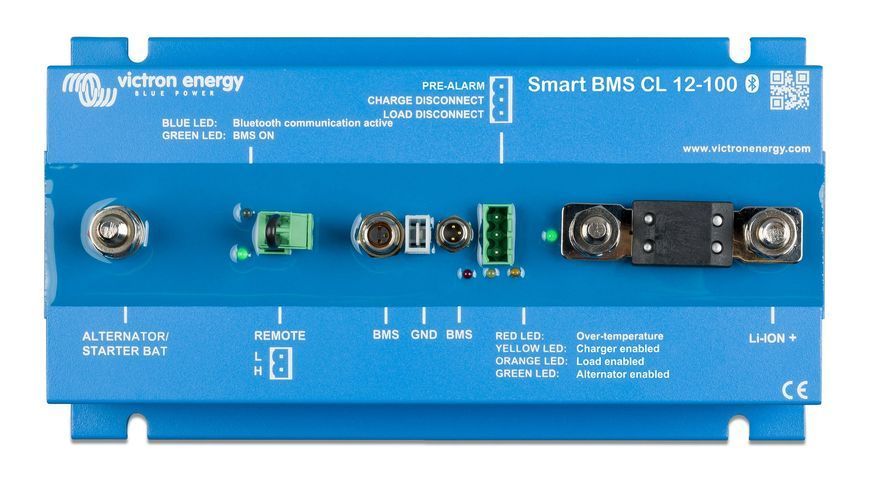

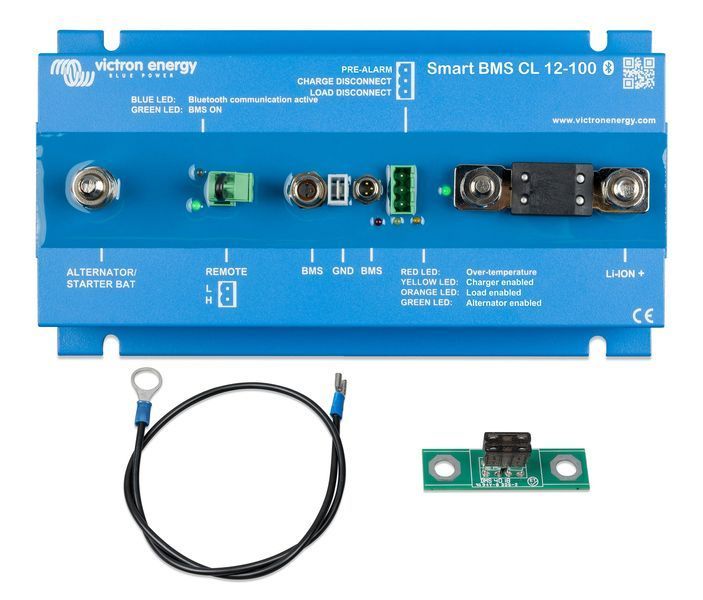

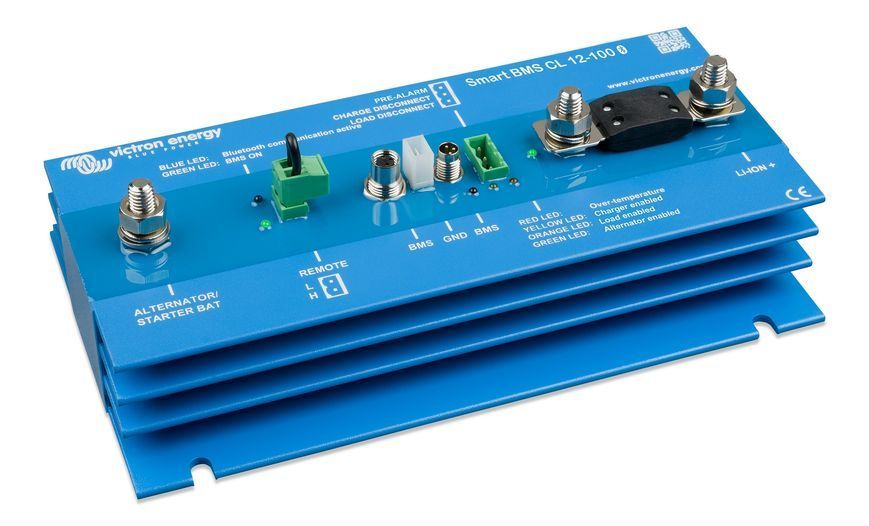

Victron Energy Smart BMS CL 12/100 (100 A, 12 V) – is an advanced control and protection system (BMS) designed specifically to work with Victron Energy lithium iron phosphate (LiFePO4) batteries with a voltage of 12.8 V. This solution guarantees a high level of safety, continuous monitoring, and easy integration into 12-volt on-board networks of vehicles and small vessels. The device combines the function of limiting the charging current from the generator, wireless Bluetooth monitoring, alarm ports, and the possibility of modular connection to the rest of Victron peripherals.
Main advantages of the Smart BMS CL 12/100 controller
- Smart protection of the car generator – the integrated Charge Current Limiter prevents the failure of both the generator itself and the battery. Overheating is eliminated even when working with high-power generator sets.
- Comprehensive support for LiFePO4 – continuous monitoring of the parameters of each individual battery cell with the function of instantaneous cut-off of charging stations and consumers in case of overheating, voltage surges, or critical discharge.
- Small dimensions and IP65 moisture protection – an excellent option for use in vehicles, on yachts, and in mobile energy systems.
- Remote monitoring and configuration via Bluetooth using VictronConnect – the ability to track all operational characteristics of the system online without physical cable connections.
- Early warning port – allows sending a control signal to a relay, LED indicator, or sound siren before the main protection is triggered.
Technical features and interfaces
- Alternator/Starter Batt+ input – a smart port with the function of current limiting (within ~90% of the rating of the installed fuse) and diode protection against reverse current – energy is supplied exclusively in the direction of the battery.
- Load disconnect output – a port for instantaneous de-energization of consumers when battery parameters go beyond critical limits.
- Charge disconnect output– blocking the charging process to protect the battery from overcharging.
- Remote on/off – terminals for remote start or stop of the entire power system (or only the charging circuit).
- Pre-Alarm – a signal port that triggers before automatic disconnection.
- Bluetooth and Instant Readout function – detailed battery operation statistics available in the VictronConnect app even without the need to establish a direct connection.
Device application options
- Motorhomes, campers, automotive platforms – comfortable and 100% safe battery charging from the standard engine generator.
- Water transport – reliable power supply for navigation systems, radio communication, on-board refrigerators, and lighting.
- Specialized transport and mobile workshops – stable power for professional equipment with a high level of autonomy.
- Systems with increased energy redundancy requirements – when used together with branded Victron inverters and chargers
Available communication and integration ports
- VE.Direct– an interface for broadcasting operating parameters to centralized Victron monitoring systems.
- Bluetooth– built-in module for wireless control and configuration via a mobile device.
- Pre-alarm / Load / Charge Disconnect outputs – terminals for controlling external relays, load lines, and notification systems.
- Remote On/Off – the possibility of integration into global management systems (such as Cerbo GX, Venus GX, and similar).
