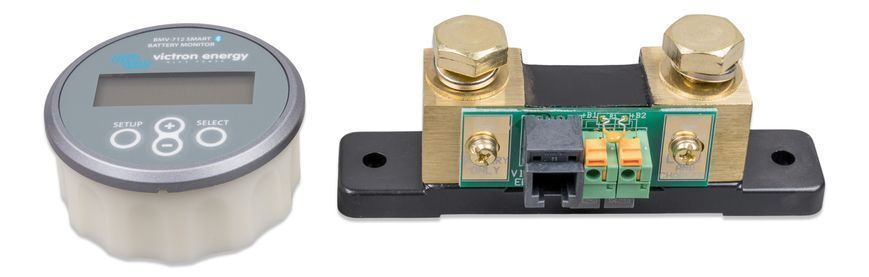

BMV-712 Black Smart is the most feature-rich model of battery monitor from Victron Energy. The device boasts integrated Bluetooth, midpoint voltage monitoring, thermal sensor support and a built-in generator control algorithm.
The monitor will work perfectly with any type of battery (AGM, GEL, LiFePO4). It can work as a stand-alone device or be integrated into complex systems controlled by GX devices with access via VictronConnect.
The original Victron 500A/50mV measuring shunt is included in the package - go to technical parameters
The main advantages of the Victron BMV-712 Black Smart monitor
- Built-in Bluetooth module – setup and monitoring take place on the smartphone screen without unnecessary wires
- Monitored parameters:
- Battery charge level (%)
- Voltage and Current
- Capacity consumption (Ah)
- Predicted operating time
- Additional port for:
- Battery temperature measurements
- Reading starter battery voltage
- Control the balance of cans (midpoint voltage)
- Availability of relays for automatic start of generators
- VE.Direct bus for global control systems (Cerbo GX)
Technical characteristics
- Article: BAM030712200 (R)
- Operating voltage: 6.5 – 70 V
- Shunt included: 500 A/50 mV
- Current rating: ±500 A (and up to 10,000 A with appropriate shunt)
- Communication: VE.Direct, Bluetooth Smart
- Midpoint control function: Yes
- Screen: monochrome with backlight
- Mounting: panel mounting (square frame included)
Where used
- Compact electrical systems for motorhomes, trailers and SUVs
- Energy storage systems (ESS) for country houses
- Yachts and boats (control of traction and starter groups)
- Solar power plants with lithium or lead batteries
Available interfaces
- Wireless Bluetooth - full statistics in your smartphone (VictronConnect application)
- Wired VE.Direct – integration with Color Control, Cerbo GX controllers
- Relay output – for automatic closing or opening of contacts
Cell balance control (Midpoint Voltage)
Key function for composite batteries (24 or 48 V):
- Controls the voltage at the connection point of 12V or 2V cells
- Quickly detects a problem battery in a chain
- Warns the user before an imbalance destroys the entire assembly
- Indispensable functionality for ensuring the security of large banks of LiFePO4 and AGM
Autostart of petrol and diesel generators
BMV-712 Black Smart can take over control of the generator:
- Start signal: when the charge drops below 50% or the voltage drops
- Stop signal: when 90-100% SoC is reached or when the timer ends
- Why is this important: The generator operates only when it is really necessary, which significantly saves fuel, reduces noise and extends the service life of the generator.
Related products Victron Energy
- Temperature sensor – ASS000100000
- GX interfaces (Cerbo GX, Ekrano GX)
- Marine integration MFD (Raymarine, Garmin) via NMEA2000
