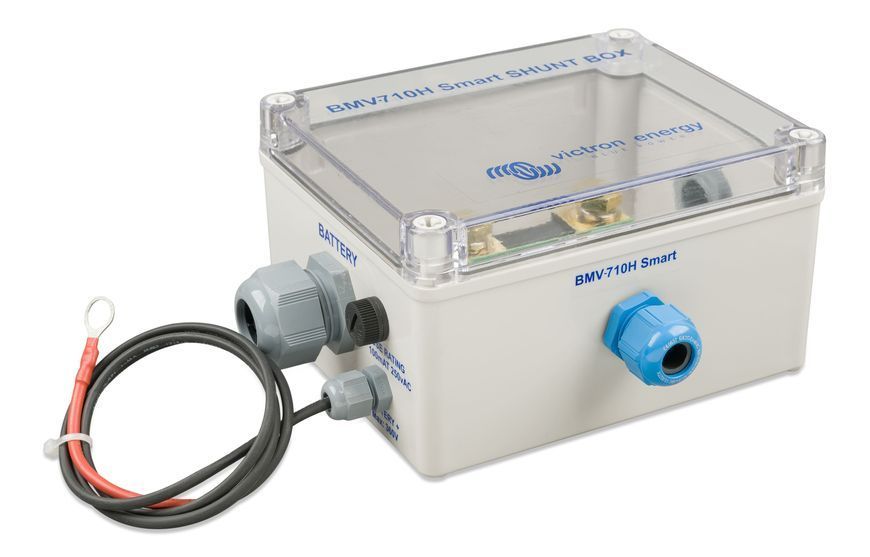

BMV-710H Smart is a modern high-voltage battery monitor that can operate with voltages up to 350 V DC. With built-in Bluetooth module, it allows you to communicate directly with your smartphone via the VictronConnect app.
Ideal for demanding backup power systems based on LiFePO₄, AGM or GEL batteries, including industrial facilities, marine vessels and telecommunications stations.
The original Victron 500A/50mV measuring shunt is included in the package - go to technical parameters
The main advantages of the Victron BMV-710H Smart monitor
- Wireless Bluetooth Smart – complete diagnostics on the screen of your smartphone
- Work with high voltage batteries (up to 350 V)
- Ultimate accuracy in measuring current, voltage, SoC, Ah
- Fully compatible with:
- Lithium (LiFePO₄) banks
- Standard lead batteries (GEL/AGM)
- Built-in programmable relay for automation (generators, alarms)
- VE.Direct connector for connection to the Cerbo GX or Color Control GX ecosystem
- Almost zero energy consumption
Technical characteristics
- Article: BAM030710100
- Operating voltage: 60 – 350 V DC
- Complete shunt: 500 A/50 mV
- Wired interface: VE.Direct
- Relay: programmable (max. 60 V, 1 A)
- Thermal sensor: supported (ASS000100000 required)
- Radio module: Bluetooth Smart
- Display: liquid crystal with soft backlight.
- Type of installation: mortise on panel.
- Consumption: 1 mA
Where used
- Large power supply systems 96V, 192V, 320V
- Industrial LiFePO₄ battery arrays
- Cellular stations with high-voltage storage
- Large motor yachts with 144-volt power supply
- Equipment with integration into the VRM ecosystem via Cerbo GX
Available interfaces
- Bluetooth Smart – for local communication with smartphones and PCs
- VE.Direct – for inclusion in Victron centralized control systems
- Relay contact – external load control
- Temperature sensor input – for smart charge current compensation
Automatic generator control
BMV-710H Smart takes control of the backup generator, relying on:
- Current percentage of charge (SoC)
- Array voltage
- Estimation of time until battery charging ends
This is especially valuable when used with LiFePO₄ because they:
- Charges very quickly
- Extremely sensitive to the correct charge parameters
- They hold voltage for a long time without sags, which makes it difficult to measure the SoC without a high-quality monitor
Protection and safety of high voltage circuits
- Successful operation in conditions up to 350 V DC
- Massive 500 A shunt design
- Possibility of transmitting emergency alerts (via relay)
- Global monitoring of all parameters via the VRM portal
