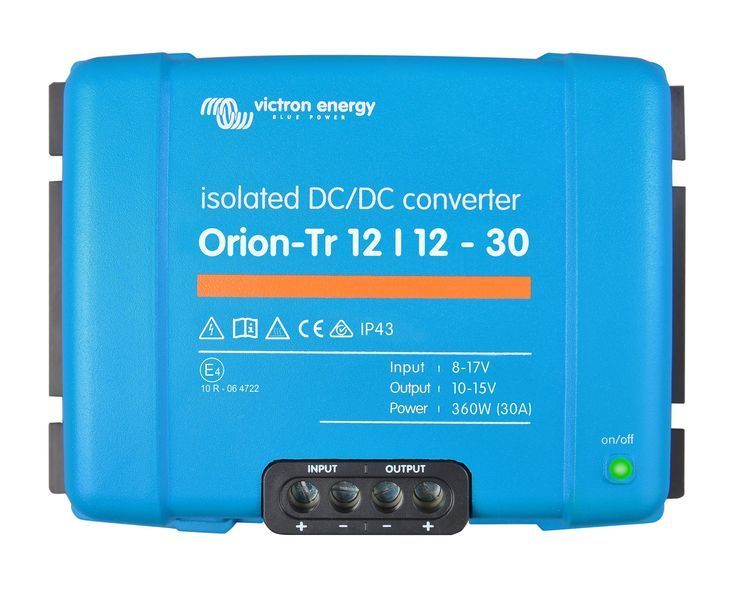

Victron Energy Orion-Tr 12/12-30 (360W) Converter — is a reliable isolated DC-DC converter (voltage stabilizer). It is specifically designed to provide perfect 12-volt power to sensitive equipment from a standard 12V network. The main feature of the model is full galvanic isolation (200 V DC), which guarantees electrical safety, cuts off any stray currents, and solves the problem of "ground loops" in complex electronics.
This is a basic and fail-safe choice for yachts, motorhomes, and industrial automation, where a guarantee is needed that interference from the generator will not burn expensive devices.
The Most Important Advantages of Orion-Tr 12/12-30
- Operating power: 360 W, nominal output current – 30 A
- Precision stabilization: an even 12.2 V at the output (with the possibility of manual adjustment from 10 to 15 V)
- Galvanic isolation of circuits (up to 200 V DC): 100% physical separation of input, output, and ground
- High energy efficiency: Efficiency reaches 87%, and no-load consumption is negligible (< 50 mA)
- Parallel scalability: devices can be combined without limits to obtain the required total current
- Remote ON/OFF port: allows you to turn the device on and off remotely
- Reliable protection: IP43 class (when installed with terminals pointing downwards) saves from condensation and splashes
- European ECE R10-6 certification: official approval for integration into any transport
Technological and Design Features
Galvanic Isolation — a Shield for Electronics
What does the presence of an isolated circuit provide:
- Blocks parasitic (stray) currents causing hull corrosion and interference
- Eliminates the problem of a common "ground" between the starter battery and sensitive equipment
- Protects expensive echo sounders, PLC controllers, and radios from high-voltage breakdowns
Flawless Voltage Stabilization
- The output voltage can be finely adjusted (from 10 to 15 V) to the needs of a specific device
- The device provides a clean 12.2 V even when the input voltage jumps from 8 to 17 V
- Optimal solution for powering telemetry, CCTV cameras, and navigation
Easy Power Scaling
- The number of converters connected in parallel is unlimited
- Easily get currents of 60 A, 90 A, and more, simply by adding more modules to the circuit
Main Areas of Application of the Converter
- Cars, campers, and special equipment — 100% clean power for monitors and media systems
- Yachts and small vessels — protection of navigation and communication equipment from engine interference
- Mobile service vans — energy stabilization for control and measuring instruments
- Security and telecom systems — fault-tolerant powering of routers, sensors, and IP cameras
- Industrial automation — powering low-voltage controllers without ground interference
Connection and Adjustment Options
- Remote ON/OFF function – start can be controlled from the ignition switch, toggle switch, or BMS
- Manual calibration – built-up potentiometers (trimmers) allow you to manually adjust the output voltage, compensating for cable length
