Victron Blue Smart IP65 Charger 24V 13A water-resistant with DC connector for industry - BPC241331064

In stock

SKU: BPC241331064

Leave your feedback

5 year warranty

Blue Smart IP65 Charger 24/13 + DC connector — is a high-tech premium-class device from the well-known Dutch company Victron Energy. The model is designed for the safe and maximally efficient charging of 24-volt batteries with a current of up to 13 A. Thanks to the sealed housing that meets the strict IP65 protection standard, the device is reliably protected against the ingress of dust and moisture. This makes it an ideal solution for operation in harsh conditions, and an extensive choice of compatible accessories turns the device into an indispensable assistant on yachts, in motorhomes, garages, and industrial facilities.

Advanced engineering solutions, including an adaptive charge algorithm, a conservation function (Storage Mode), and an integrated Bluetooth module, guarantee the highest efficiency, comfort, and safety. Using the free VictronConnect mobile application, you can remotely control all charging parameters, track statistics, and update the device's firmware over the air.

Main Advantages of the Blue Smart IP65 Charger 24/13 + DC connector Model

IP65 Standard Protection: reliable insulation from water splashes and dust allows for the safe use of the device even in high humidity conditions and outdoors.

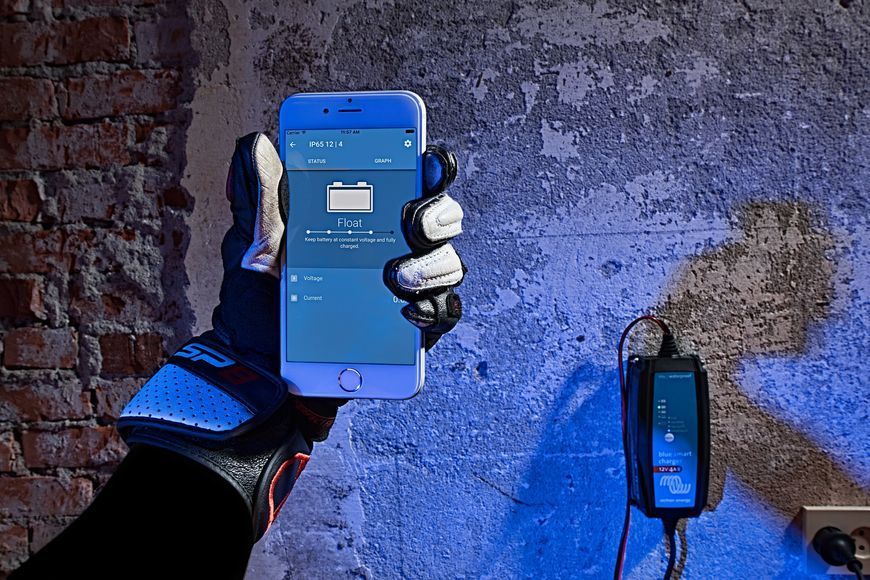

Wireless Control (Bluetooth): full control over the charging process via the VictronConnect app from a smartphone, tablet, or computer. Both ready-made factory profiles and flexible manual parameter settings are available.
Wide Compatibility: the device works correctly with all types of lead-acid batteries (including AGM, GEL, and classic starter batteries), as well as popular lithium iron phosphate (LiFePO₄) batteries.
Storage Mode: protects the battery from premature plate degradation during long periods of downtime, completely eliminating the risk of harmful overcharging.
Recovery Function: allows for the safe resuscitation of deeply discharged (“sleeping”) batteries, returning them to their original working capacity.
Intelligent Temperature Compensation: the automation system automatically adjusts the output voltage based on the current ambient temperature.
High Efficiency (up to 95%): minimizes power losses and prevents excessive heating of the housing during intensive operation with high currents.
Built-in Safety: reliable hardware protection against short circuits, reverse polarity, and critical overheating.
Absolutely Silent Operation: thanks to the absence of cooling fans, passive cooling functions without a single sound.
5-year Warranty: the best confirmation of premium build quality and exceptional reliability from Victron Energy.

Technical and Design Features

Adaptive 7-stage Algorithm: the microprocessor continuously assesses the state of the battery and selects the ideal charge cycle, which extends the battery lifespan by up to 50% compared to standard devices.
Maximum Current Regulation: the ability to manually limit the output current strength for the gentle maintenance of low-capacity batteries.
Ultra-compact Design: the lightweight, ergonomic housing allows the device to be used as a mobile portable unit or mounted securely and permanently.
Non-volatile Memory: your individual Bluetooth settings are saved in the system even after the device is completely powered down.
Quick Connection System (DC Connector): the moisture-protected connector provides instant connection to the battery terminals via various adapters and branded accessories.
Real-time Monitoring: all relevant telemetry is output directly to your gadget's screen via the application in online mode.
User Configurations: create your own presets for quick parameter switching across different types of batteries.

Where Blue Smart IP65 Charger is Applied

Transport (cars, motorcycles, marine equipment) — reliable maintenance and charge preservation of 24-volt onboard and starter systems.
Boats, motorhomes, and campers — professional charging of powerful service (domestic) battery banks, including modern lithium systems (LiFePO4).
Compliance with E4-10R Standard (Electromagnetic Compatibility) — the device does not create radio interference for onboard electronics (ABS, multimedia, lighting) and is itself reliably protected from external electromagnetic radiation.
Service Centers and Auto Repair Shops — a universal working tool for prompt servicing of car and motorcycle batteries.
Industrial Sector — stable charging of high-capacity batteries for cordless power tools, specialized warehouse machinery, and equipment.
Alternative Energy — maintaining the balance of batteries in solar power plants and backup power systems.

Device Model	Operating Voltage	Max. Current	Bluetooth	Dimensions
Blue Smart IP65 Charger 6V/12V-1.1 + DC connector	6 and 12 V	1.1 A	Yes	38 x 64 x 153 mm
Blue Smart IP65s Charger 12/4 + DC connector	12 V	4 A	Yes	45 x 81 x 182 mm
Blue Smart IP65s Charger 12/5 + DC connector	12 V	5 A	Yes	45 x 81 x 182 mm
Blue Smart IP65 Charger 12/7 + DC connector	12 V	7 A	Yes	47 x 95 x 190 mm
Blue Smart IP65 Charger 12/10 + DC connector	12 V	10 A	Yes	60 x 105 x 190 mm
Blue Smart IP65 Charger 12/15 + DC connector	12 V	15 A	Yes	60 x 105 x 190 mm
Blue Smart IP65 Charger 12/25 + DC connector	12 V	25 A	Yes	75 x 140 x 240 mm
Blue Smart IP65 Charger 24/5 + DC connector	24 V	5 A	Yes	47 x 95 x 190 mm
Blue Smart IP65 Charger 24/8 + DC connector	24 V	8 A	Yes	60 x 105 x 190 mm
Blue Smart IP65 Charger 24/13 + DC connector	24 V	13 A	Yes	75 x 140 x 240 mm

Package Includes:

Main unit of the Blue Smart IP65 Charger 24/13 with integrated cable for connection to a 230 V mains supply
Detachable cable with eyelet terminals (M8) for reliable permanent mounting
Detachable cable with alligator clips for quick temporary connection
Factory shipping box
Detailed user manual for operation
Official warranty card from the manufacturer
Electronic copy of the certificate of conformity (available upon request)

Is this device compatible with lithium batteries?
Yes, the charger fully supports operation with LiFePO₄ and other lithium-based batteries.

Is it permissible to operate the charger outdoors?
Yes, thanks to the IP65 protection class, the housing reliably resists dust and precipitation. The main restriction is — the device must not be completely submerged in water.

How is the software updated?
The firmware is updated over the wireless Bluetooth network using the free VictronConnect mobile application.

Can the charger operate as a power supply for third-party equipment?
Yes, for these purposes, the Power Supply Mode is provided, which allows powering 12-volt devices and tools even without connecting to a battery.

Is it possible to manually reduce the charging current strength?
Yes, you can programmatically limit the maximum current through the VictronConnect app, adapting to the capacity of your battery. For example, on the 10-amp version, you can set a safe charge limit at 3 A.

Is it safe to keep the charger constantly connected to the terminals?
Absolutely safe. Upon completion of the main cycle, the device independently switches to maintaining mode (Storage/Float), completely eliminating overcharging. This is an ideal solution for multi-month winter storage of boat, motorcycle, and car batteries (AGM, GEL, starter), allowing to preserve their operational resource by 100%.

Is this model suitable for use on yachts and boats?
Yes, it is an excellent choice for water transport. The IP65 protective shell prevents humid marine air and splashes from entering the housing (but does not protect against submersion under water).

Where are the protective fuses located?
The device itself is equipped with reliable built-in electronic protection against overheating, reverse polarity, and short circuits. Physical fuses are usually integrated directly into the detachable connection cables (included in the package or sold in the accessories section).

Can batteries be charged at sub-zero temperatures?
The charger itself operates stably in the cold, but the battery chemistry plays a decisive role. For lead-acid batteries (starter, AGM, GEL), the charger automatically applies temperature compensation, increasing the voltage for the chemical reaction to proceed correctly. Attention: charging lithium iron phosphate (LiFePO₄) batteries at negative temperatures is strictly prohibited!

Is the device capable of “reviving” sulfated batteries?
Yes, the special Recondition Mode is designed for the gentle recovery of heavily sulfated and deeply discharged lead-acid batteries whose voltage has dropped down to a critical 2 V (“dead” batteries).

How long does a full charging cycle take?
The duration of the process directly depends on the battery capacity and its depth of discharge. For example, a deeply discharged (down to 10.5 V) lead-acid battery of AGM/GEL type with a 100 Ah capacity will replenish its charge from a 10-amp device in approximately 12–13 hours (taking into account the operation of the recovery algorithm). A lithium LiFePO₄ battery (12.8 V, 100 Ah) will charge from the same charger slightly faster — about 10 hours, depending on the internal limits of the BMS board.

How to correctly calculate the charger power for the battery capacity?
The optimal charging current depends on the applied battery technology:

For lead-acid batteries (AGM, GEL, starter), the safe charging current should be between 5% and 15% of their nominal capacity. For example, a 65 Ah battery requires a current from 3.25 A (65 * 0.05) to 9.75 A (65 * 0.15) — 5 A or 7 A models are perfectly suited here.
For lithium batteries (LiFePO₄), higher currents are permissible: from 10% to 50% of the capacity. Accordingly, a 100 Ah battery can be safely charged with devices having a nominal current strength from 10 A to 50 A.

Rate this item

682 GEL

Quick order

Features

Maximum input AC voltage, V~	265
Minimum input AC voltage, V~	180
Charge current, A	13.0
Night mode or low power charge current, A	4.0
Output voltage, V	24
Efficiency	95%
No-load standby power consumption, W	0,5
Charge algorithm (number of stages)	7
Bluetooth availability	Yes
Can be used as a power supply	Yes
Humidity (non-condensing)	95%
Protection	Reverse polarity, Overheating, Short circuit
Maximum operating temperature (+°C)	60
Minimum operating temperature (-°C)	40
Battery connection	Black and red cable 1.5 meters
230V mains connection	Cable with plug
Weight, kg	2.0
Dimensions, mm (H x W x D)	75 x 140 x 240
Safety standards:	EN 60335-1, EN 60335-2-29
Electromagnetic compatibility standards:	EN 55014-1, EN 61000-6-3, EN 61000-3-2
Immunity to electromagnetic interference standards:	EN 55014-2, EN 61000-6-1, EN 61000-6-2, EN 61000-3-3
Automotive directive standards:	E4-10R
Protection class	IP65
Warranty period, months	60
