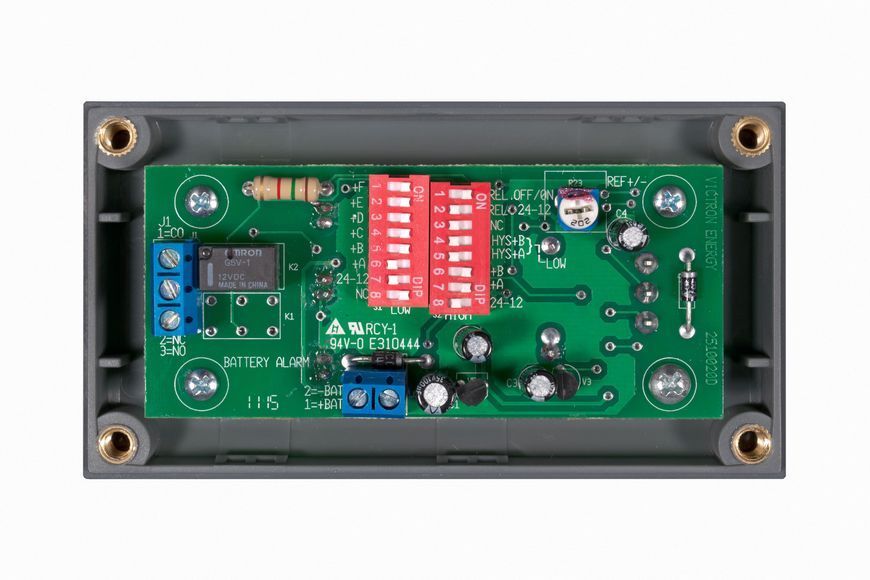

Battery Alarm GX (BPA000100010R) is a compact audible and visual warning systemdesigned specifically for battery monitoring. It instantly reacts to a critical drop or overvoltage in the system. If the parameters go beyond the set limits, the panel activates a loud sound signal and a red LED indication. This is an indispensable device for protecting expensive battery arrays from deep discharge or overcharging.
Main advantages of the Battery Alarm GX panel
- Continuous monitoring of battery array voltage
- Bright LED and loud sound alarm in case of emergency situations
- Adjustable response thresholds (minimum and maximum voltage)
- The presence of two independent relays for automatic starting of the generator or connecting an external siren
- Versatile - supports 12, 24 and 48 V systems
- Compact flush-mount design that fits perfectly with other Victron panels
Technical characteristics
- Article: BPA000100010R
- Controlled voltage range:6.5 to 70 VDC
- Measurement accuracy:0.6% of nominal value
- Alert system: powerful buzzer (with temporary shutdown function)
- Relay outputs: 2 changeover contacts (NO/NC) for external devices
- Maximum relay current: 1 A at 70 VDC
- Visual indication: status LEDs (normal/error)
- Installation type: mortise panel for installation in a dashboard or dashboard
- Dimensions of the front part: 65 × 120 mm
- Operating temperature range: –20°C to +50°C
Areas of application
- Yachts and boats - timely notification of low service batteries
- Autonomous power systems (Off-grid) - protection of batteries from premature wear
- Motorhomes and special vehicles - acoustic monitoring of the on-board network while traveling
- Telecommunication systems - integration of the panel with external monitoring systems
- Server and UPS - using a relay to transmit an emergency signal to the dispatcher console
Connection features
- Direct connection to battery using fused cables
- Convenient adjustment of response thresholds using built-in potentiometers on the rear side of the panel
- Ability to mute the sound by pressing a button on the front panel (silent mode)
