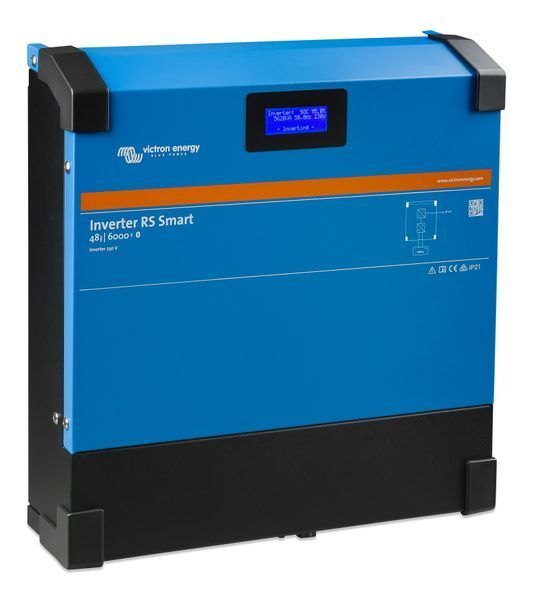

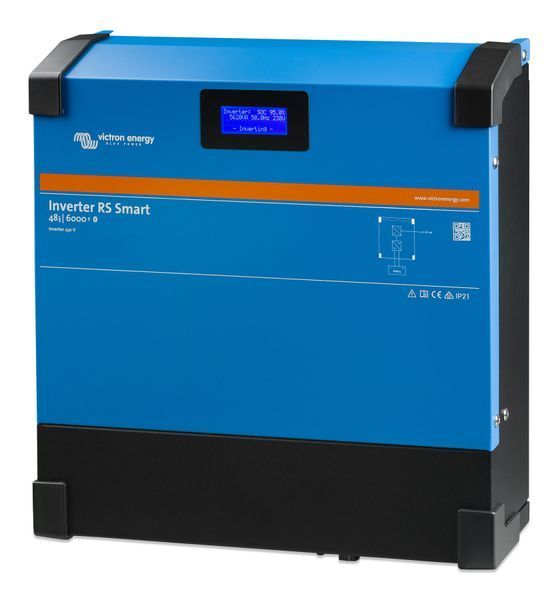

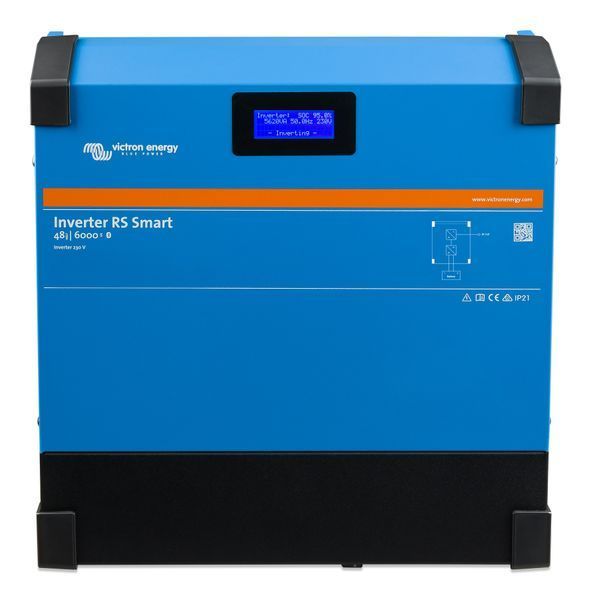

Inverter RS 48/6000 230V Smart – is an ultra-modern premium hybrid inverter from Victron Energy, featuring a unique function of charging batteries directly from third-party grid-tied inverters. This device is designed to create super-powerful autonomous power plants: system scalability reaches a colossal 72 kVA in single-phase and 216 kVA in three-phase execution.
The model is equipped with the widest arsenal of communication ports (VE.Direct, VE.Can, Bluetooth), which opens up boundless possibilities for integration. You can connect external MPPT solar controllers, precision smart shunts, and carry out digital data exchange with smart BMS of lithium batteries (LiFePO4). The built-in Bluetooth module allows you to configure the device from a smartphone via the VictronConnect app, and connecting to the GX control panel brings your system online to the VRM portal for total control from anywhere in the world.
Key advantages of the Inverter RS 48/6000 230V Smart
- Integration with grid-tied PV inverters – a unique "feature" of the RS series. When connecting a regular grid-tied inverter (for example, Fronius) to the AC output of the Inverter RS, the excess generated solar energy is directed not to the grid, but to charge the batteries. Thus, a classic grid-tied station turns into an advanced hybrid one!
- Purest sine wave 230 V (or 400 V when creating a three-phase array) – reference voltage quality for safe powering of complex household electronics and sensitive servers.
- High nominal power 6000 VA (4500 W) – excellent performance to provide energy for a whole country house or a small business.
- Mind-blowing overload capacity – the inverter is capable of delivering up to 9000 W for 3 seconds or up to 7000 W for 4 minutes! This guarantees an easy start for heavy electric motors, pumps, and compressors.
- Phenomenal scaling (up to 72 kVA) – support for parallel operation of up to 12 inverters (6 x 12 = 72 kVA / 54 kW).
- Ideal three-phase grid – generation of full-fledged three-phase voltage 400 V 50 Hz with an ideal phase shift of 120°, which is critically important for the correct operation of industrial three-phase consumers.
- Setup convenience (built-in Bluetooth) – instant access to parameters from a smartphone.
- Global internet monitoring – VE.Can and VE.Direct ports make it easy to connect the device to the GX panel to output all analytics to the VRM cloud service.
- Benchmark efficiency (up to 96.5%) – minimum heat loss and maximum energy efficiency.
- Programmable relay – a universal tool for setting up automation (generator auto-start, turning on cooling, etc.).
- Super-economical standby mode (only 20 W) – careful handling of battery charge.
- Compactness and light weight (11 kg) – ease of transportation and installation thanks to the use of new generation high-frequency circuitry.
Unique technological features
- Super-powerful charger (85 A) – allows you to phenomenally quickly replenish the capacity of massive battery assemblies when an external grid or sun appears.
- Symbiosis with powerful PV inverters – up to 5000 W of grid-tied solar inverter can be safely connected to a single Inverter RS 48/6000. In a three-phase assembly, this figure reaches 15 kW!
- Battery temperature sensor included in the basic configuration!
- Frequency Shift technology – the inverter is able to intelligently control the generation power of third-party grid-tied inverters by smoothly shifting the frequency in the local microgrid. A native data transfer protocol with Fronius inverters is supported.
- Adaptive thermal control – unlike cheap analogs, upon reaching critical temperatures, the inverter does not "cut out", but intelligently reduces power, continuing to provide you with electricity.
- Wide input voltage range (36-60 V) – ensures 100% compatibility with almost all 48 V lithium and lead-acid batteries on the market.
Application areas of Inverter RS
- Off-Grid stations – creating completely independent high-power solar power plants.
- Commercial sector – the most reliable backup power for shops, cafes, service stations and offices.
- Production complexes – uninterrupted supply of sensitive equipment and machine tools.
- Private households – ensuring uninterrupted operation of heating, water supply and refrigerators during power outages.
- Three-phase infrastructure – creating stable, powerful three-phase networks for agricultural enterprises and hotels.
Communication and control interfaces
- Dual VE.Bus port – the main interface for building parallel/three-phase clusters and connecting to monitors (Cerbo GX).
- Programmable relay – for the implementation of any custom automation scenarios.
- VE.Bus Smart Dongle module (optional) – for local remote control via Bluetooth, if the built-in module is not enough.
- VE.Bus to USB PC cable (optional) – for the deepest engineering programming via PC.
