Current Transformer 100A:50mA (1 m) for MultiPlus-II and Quattro-II – CTR110000500

In stock

SKU: CTR110000500

Leave your feedback

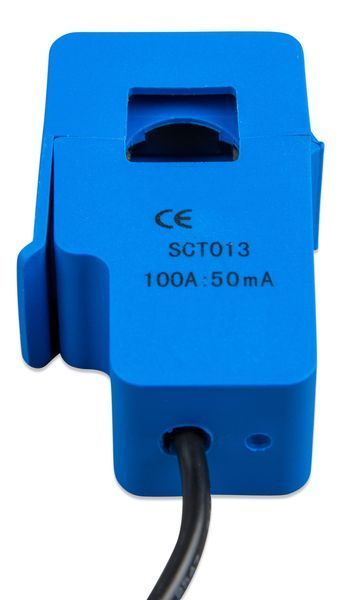

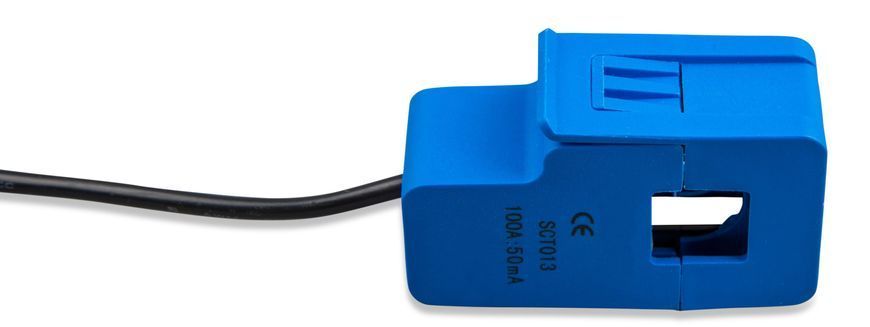

Current measuring transformer 100A:50mA (1 meter cable) – this is a compact high-precision sensor, designed specifically to work with the new generation Victron Energy MultiPlus-II and Quattro-II series inverters. The device is put on the input phase wire and measures the real energy consumption from the external network, instantly transmitting this data to the inverter. This opens up access to the PowerControl and PowerAssist functions, allowing the hybrid system to dynamically mix in energy from the batteries so as not to "knock out" the input circuit breaker.

The presence of such a current transformer is a prerequisite for building effective ESS (Energy Storage System) systems. Knowing how much energy the house takes from the network, the system can direct the excess solar generation directly to the consumption of the house, reducing your electricity bills to zero.

Main Advantages of the Transformer for MultiPlus-II / Quattro-II

Highest accuracy of monitoring currents up to 100 A (enough for an input with a capacity of up to 22 kW)
Necessary for the correct operation of PowerAssist algorithms (assistance to a weak network)
Allows you to implement zero energy export (Zero Feed-In)
Safe architecture with complete galvanic isolation (no high voltage on the signal cable)
"Plug-and-Play" system: plugged in and works, no calibration needed
Passive component — works autonomously without external power supply
Wire length 1 meter – ideal for installation when the metering board and inverter are close by

Device Specifications

Equipment support: MultiPlus-II and Quattro-II inverters (with "Current sense" input)
Measurement range (primary current): up to 100 A
Output signal: 50 mA

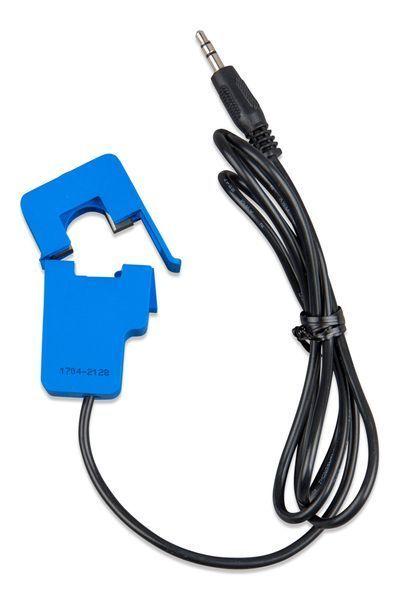

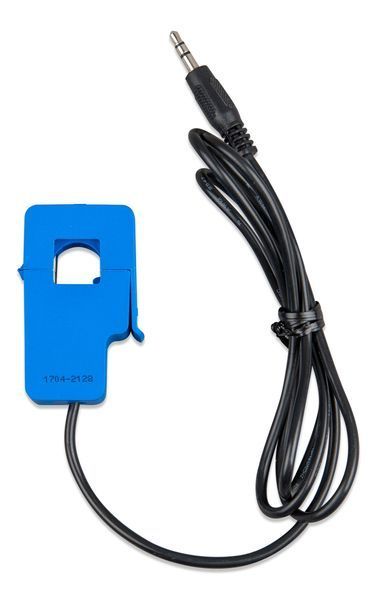

Plug: standard audio jack (Jack 3.5mm)
Wire length: 1 meter
Inner ring diameter: about 13 mm (suitable for cables up to 25-35 mm²)

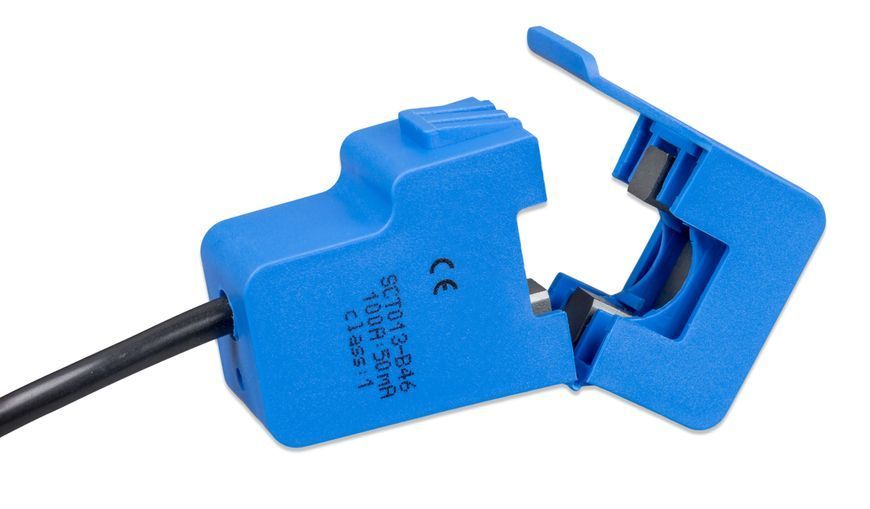

Installation method: snaps around the wire (without removing insulation and breaking the circuit)
Security: galvanically isolated
Housing: durable non-combustible polymer

Where It Is Applied

Home energy independence systems (ESS) with solar energy mixing
Fighting the disconnection of circuit breakers at facilities with a limit of allocated power
Parallel operation of an inverter and a low-power gasoline generator
Marine vessels and yachts connecting to limited port outlets
Projects with a ban on the transfer of excess energy to the city grid

Compatible Victron Devices

MultiPlus-II models: 24/3000/70-32, 48/3000/35-32, 48/5000/70-50, 48/5000/70-100 and others
Quattro-II models: 48/5000/70-50/50, 48/8000/110-100/100, 48/10000/140-100/100
The entire line of EasySolar-II GX combines
Any MultiPlus-II GX
Branded ESS ecosystems with dynamic power control

Is this transformer a mandatory element of the system?
– No, the device is not strictly mandatory. However, without it, the intelligent PowerAssist algorithms will not function, and highly accurate limitation of power from the external grid will be unavailable.

How is it connected to MultiPlus-II inverters?
– Integration takes place through a special Current Sense connector, which is equipped on compatible inverter models of the MultiPlus-II and Quattro-II lines.

Does the sensor require external power to operate?
– No, it is a completely passive component that does not require batteries or connection to a power supply.

Is it permissible to use extensions for the standard cable?
– Yes, the cable can be extended. But for correct signal transmission, the total length of the route must not exceed 20 meters, and only a high-quality shielded wire should be used for the extension.

Does the sensor provide equipment protection against high voltage?
– Absolutely. The transformer design includes reliable galvanic isolation, which completely eliminates the breakdown of high voltage to the signal part.

Is the sensor capable of detecting grid voltage?
– No, the device's functionality is limited exclusively to precision measurement of alternating current.

Is direct connection to system controllers like Cerbo GX or Venus GX possible?
– No, the architecture requires the direct connection of the measuring cable to the inverter itself (MultiPlus-II or Quattro-II). Switching with GX control panels is not provided.

Is this transformer supplied in the box with the inverter?
– It depends on the specific equipment package. In most cases, the transformer is an optional accessory and is purchased separately.

Can two such sensors be connected to one inverter for more accurate monitoring?
– No, the hardware base of Victron Energy inverters is designed to process the signal from only one current transformer.

Does it matter which side to put the transformer on the cable?
– Yes, this is critically important. There is a marker arrow on the body of the product — it must indicate the direction of current flow: from the source (city grid/generator) to the consumers (house/load).

Rate this item

107 GEL

Quick order

Features

Type of execution	Tire
Core type	Detachable
Accuracy class	0,5
Voltage, V	660
Denomination, A	100/5
Connector type	Jack connector
Cable length, m	1

	Quantity	Total
